Quick Style

You can change the style for each model in the diagram. When changing the style, it is convenient to use [Quick Style], which allows you to change the style with a single click from the prepared patterns.

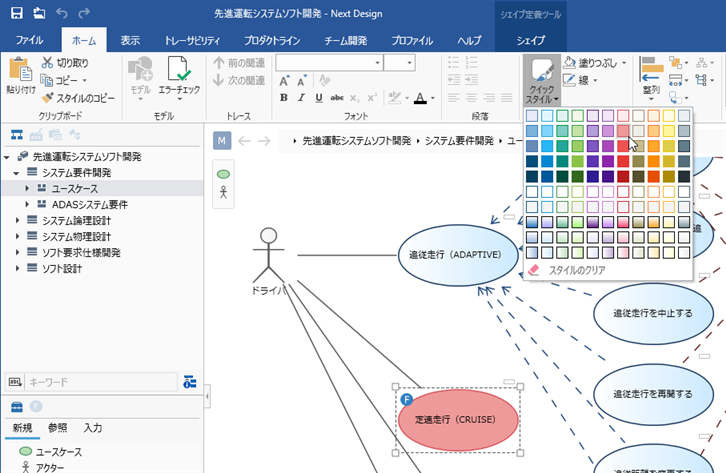

Select the model whose style you want to change on the diagram. Click the Home> Style> Quick Style menu button on the ribbon to see the style pattern. Select a pattern and click to change the style (fill color, line color) of the selected model.

Info

Click [Clear Style] under the [Quick Style] pattern to return to the style defined in the profile.

Note

There are two Quick Style menu buttons on the ribbon. The following menu buttons are used for profile definition and not model editing. * [Shape]> [Style]> [Quick Style] menu button on the ribbon
